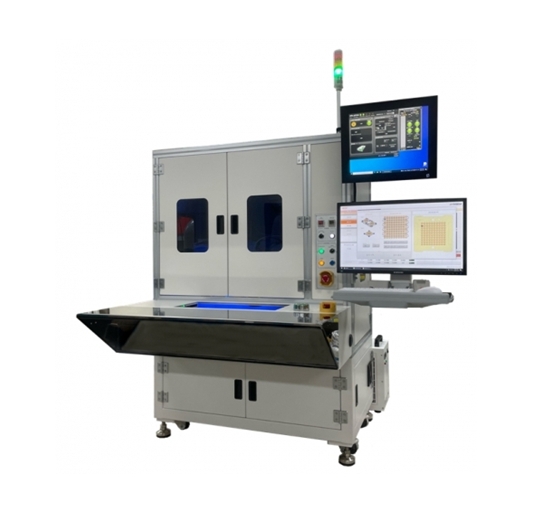

Orthodontic bracket ball welding and vision inspection system
This system is an automation equipment that make a ball of end of the bracket for orthodontic treatment by using laser and inspect ball size, ball shape and welding distance by vision system. PRODUCT SPECIFICATIONS
Specification
- Item : Various Orthodontic bracket (Ceramic & Steel)
- Welding Specification : CW Fiber Wekding Laser
- Inspection Specification : 5M Mono Camera + Telecentric Lens + Ring Light
- Tact Time : 3.1Sec/ea
- Item Loading : The worker manually feeds the product into the tray
- Tray Size : Approx. 100㎜(W) x 100㎜(D) x 8㎜(T) (customized possible)
- Machine Layout : 1,200㎜(W) x 1,200㎜(D) x 1,900㎜(H)
- Welding Specification : CW Fiber Wekding Laser
- Inspection Specification : 5M Mono Camera + Telecentric Lens + Ring Light
- Tact Time : 3.1Sec/ea
- Item Loading : The worker manually feeds the product into the tray
- Tray Size : Approx. 100㎜(W) x 100㎜(D) x 8㎜(T) (customized possible)
- Machine Layout : 1,200㎜(W) x 1,200㎜(D) x 1,900㎜(H)
Machine Features
- Multi-product possible with simple operation
- Improve inspection reliability and productivity by separately configuring ball welding and vision inspection
- User friendly HMI, easy setting by simple control and supply user guide
- After inspection, good/bad products are mapped to maximize operator convenience
- Equipment that realizes customer satisfaction through development, design, control and CS organization.
- Improve inspection reliability and productivity by separately configuring ball welding and vision inspection
- User friendly HMI, easy setting by simple control and supply user guide
- After inspection, good/bad products are mapped to maximize operator convenience
- Equipment that realizes customer satisfaction through development, design, control and CS organization.
