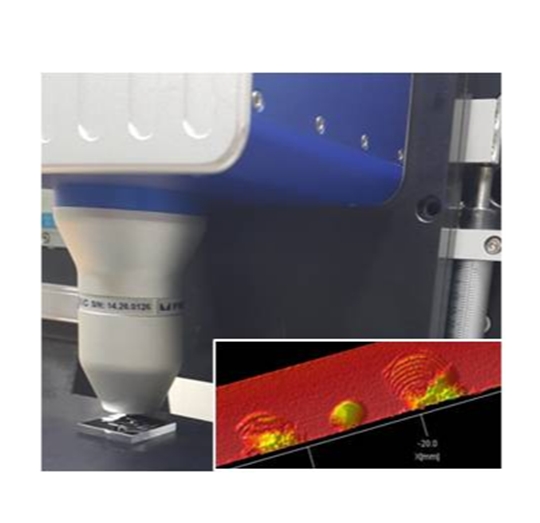

Contactless 3D Illumination Meter
Contactless 3D Illumination Meter
A facility that measures the Roughness/Waviness/Chipping of a surface polished by Grinder in three dimensions. Sophisticated and reliable illumination measurements can be made using the high-speed Line Type Chromatic Confocal Sensor that has proven its pe
Specification
- Target Item : Roughness for all materials, such as metal, glass, plastic
- Inspection Item : Roughness, Waviness, Chipping etc.
- Inspection Speed : 9.6㎟/sec ~ 239㎟/sec
- Height Resolution : 20nm ~ 320nm
- Surface slope Correspondence : ±20° ~ ±44°
- Inspection Item : Roughness, Waviness, Chipping etc.
- Inspection Speed : 9.6㎟/sec ~ 239㎟/sec
- Height Resolution : 20nm ~ 320nm
- Surface slope Correspondence : ±20° ~ ±44°
Machine Features
- High resolution 3D measurement is performed at high speed, so in-line response is possible.
- Non-contact method using white light, so there's no meterial damage at all.
- Glass is particularly strong on rigid materials such as metal and has excellent responsiveness to surface slope(bending)
- Non-contact method using white light, so there's no meterial damage at all.
- Glass is particularly strong on rigid materials such as metal and has excellent responsiveness to surface slope(bending)
