2D Meter (DVI-B150)

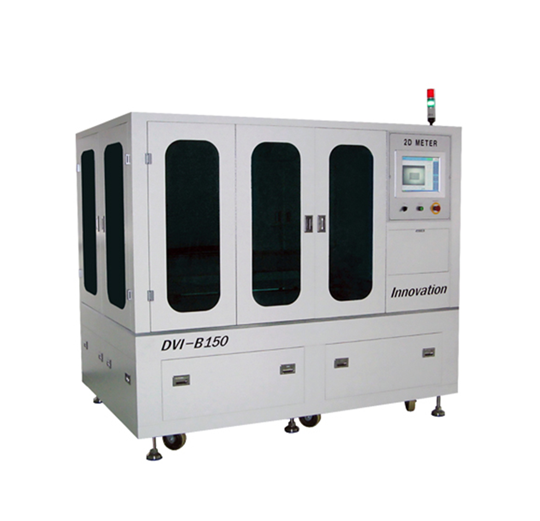

2D Meter (DVI-B150)
An equipment that automatically measures the size of polarized boards by applying integrated image processing technology and optical and motion control technology accumulated through research development and launch over many years.
Specification
- Object : Polarizing Film, Various Film
- Object Size : 20X30mm ~ 1350x800mm
- Defects : X/Y Distance, Corner Angle, C Cut Length, R Measurement
- Throughput : 30 ~ 120 second per sheet
- Resolution : 1㎛
- Camera : B/W area CCD 640x480 pixels X 1EA, 1280x1024 pixels X 2EA
- llumination : Wide angle blue color LED illumination
- Robot : XY axis (stroke : 1470x900mm)
- Computer : Pentium 4 ? 2.8GHz, 60G HDD, 1GB DRAM 15” LCD Touch Monitor
- Software : Auto model searching, Easy setting, Windows XP Pro,
Easy to use Windows interface for all system functions.
All setup parameters can be stored in specific file.
- Power : 220VAC, 50~60Hz
- Dimensions : Height - 1,950mm / Width - 2,200mm
Depth - 1,400mm / Weight - 1,850kg
- Object Size : 20X30mm ~ 1350x800mm
- Defects : X/Y Distance, Corner Angle, C Cut Length, R Measurement
- Throughput : 30 ~ 120 second per sheet
- Resolution : 1㎛
- Camera : B/W area CCD 640x480 pixels X 1EA, 1280x1024 pixels X 2EA
- llumination : Wide angle blue color LED illumination
- Robot : XY axis (stroke : 1470x900mm)
- Computer : Pentium 4 ? 2.8GHz, 60G HDD, 1GB DRAM 15” LCD Touch Monitor
- Software : Auto model searching, Easy setting, Windows XP Pro,
Easy to use Windows interface for all system functions.
All setup parameters can be stored in specific file.
- Power : 220VAC, 50~60Hz
- Dimensions : Height - 1,950mm / Width - 2,200mm
Depth - 1,400mm / Weight - 1,850kg
